Debugging Suite
Debugging Suite is a tool designed to assist developers and testers in debugging and troubleshooting issues related to SDK integration and network testing within your application.

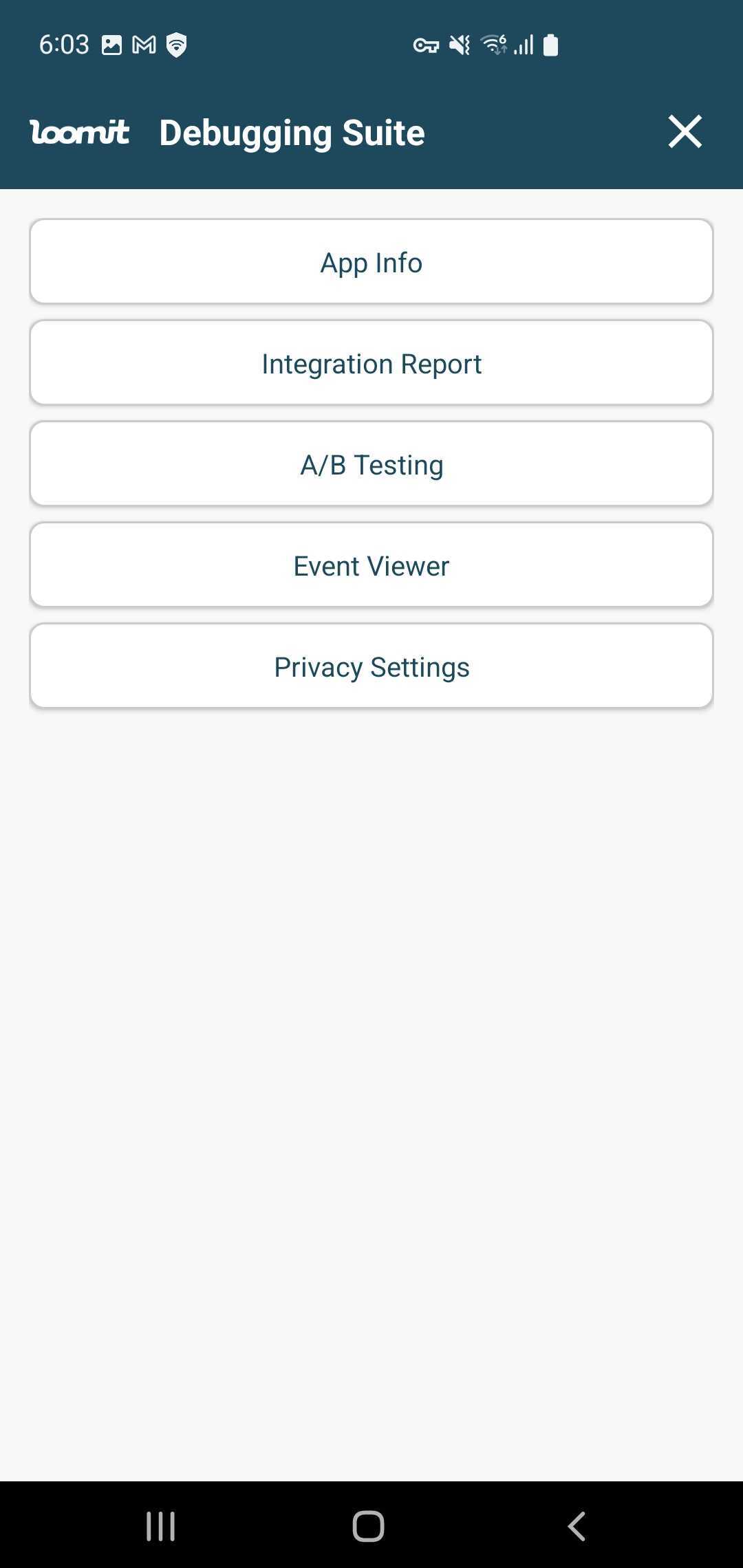

The suite provides three main features:
Open Debugging Suite
There are two ways to show the Debugging Suite: by registering a Test Device or by calling a method in your code.
Ensure the XMediator SDK has completed initialization before attempting to open the Debugging Suite. Opening it too early can result in the suite failing to launch or the app crashing.
Set up a Test Device
This option is suitable for production builds or for QA teams, where you don't have access to the code. To add your device as a Test Device, follow the steps below:
-
Obtain the GAID (Google Advertising ID) of your mobile device.
-
Login to https://admin.x3mads.com/ and go to the Test Devices section.
-
Add your device to the list and enable it for testing.
-
Open your App or Game with X3M integrated and initialized.
-

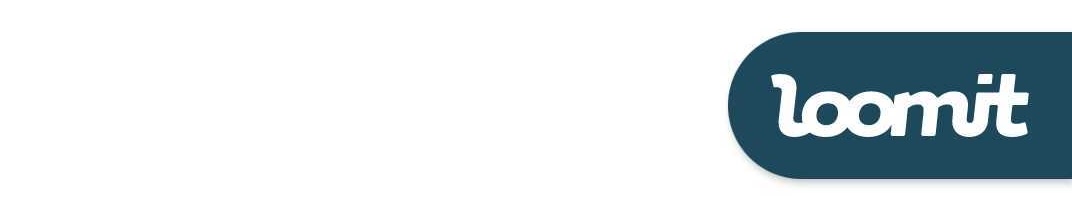

Shake your device, and a button to open Loomit's Debugging Suite should pop up in the lower-right corner.
Open Debugging Suite programmatically
To open the Debugging Suite programmatically, you can call the following method from the SDK:
- Kotlin
- Java
XMediatorAds.openDebuggingSuite(activity)
XMediatorAds.openDebuggingSuite(activity);
App Info

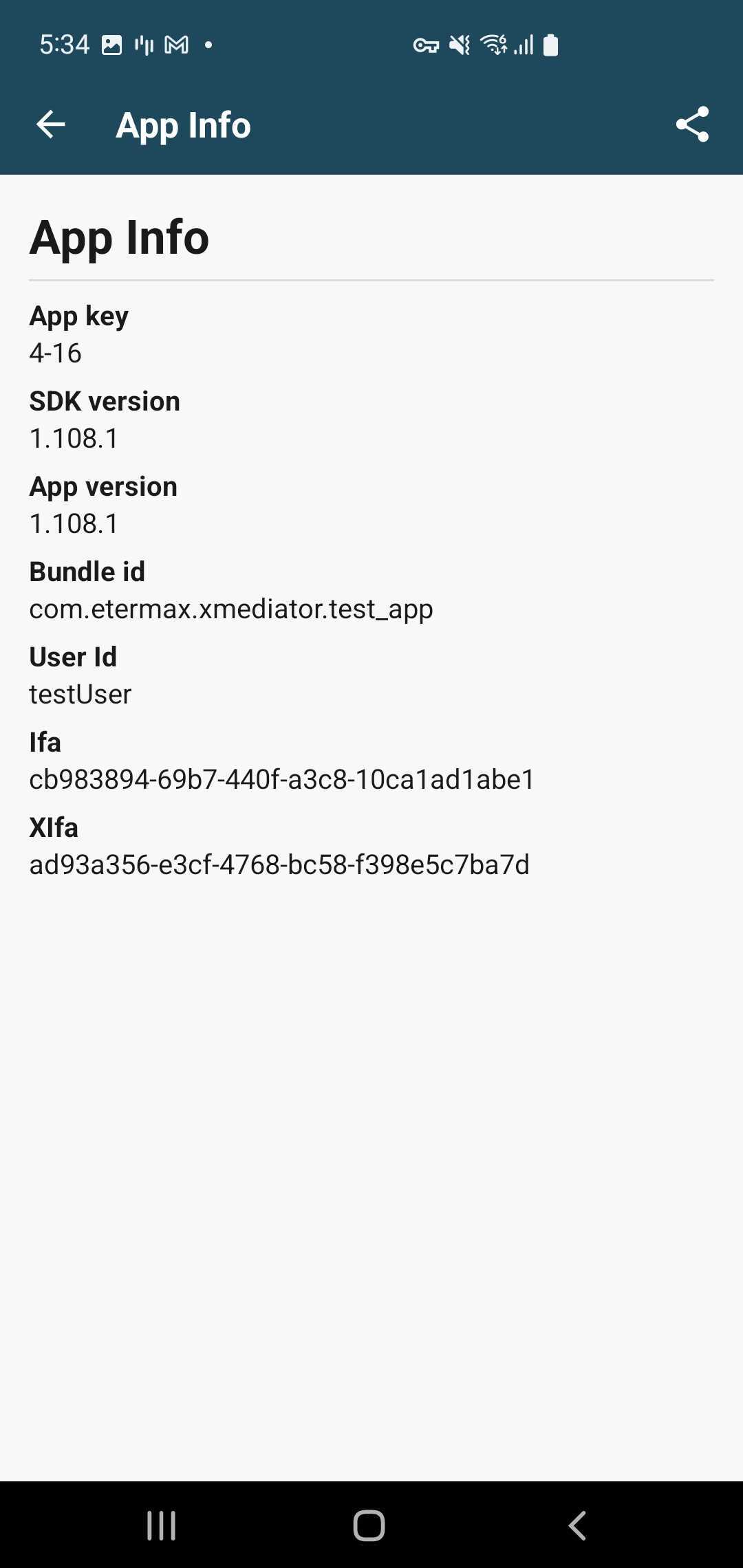

The App-Info feature offers quick access to essential SDK details, including the SDK version, initialization settings, and key identifiers.

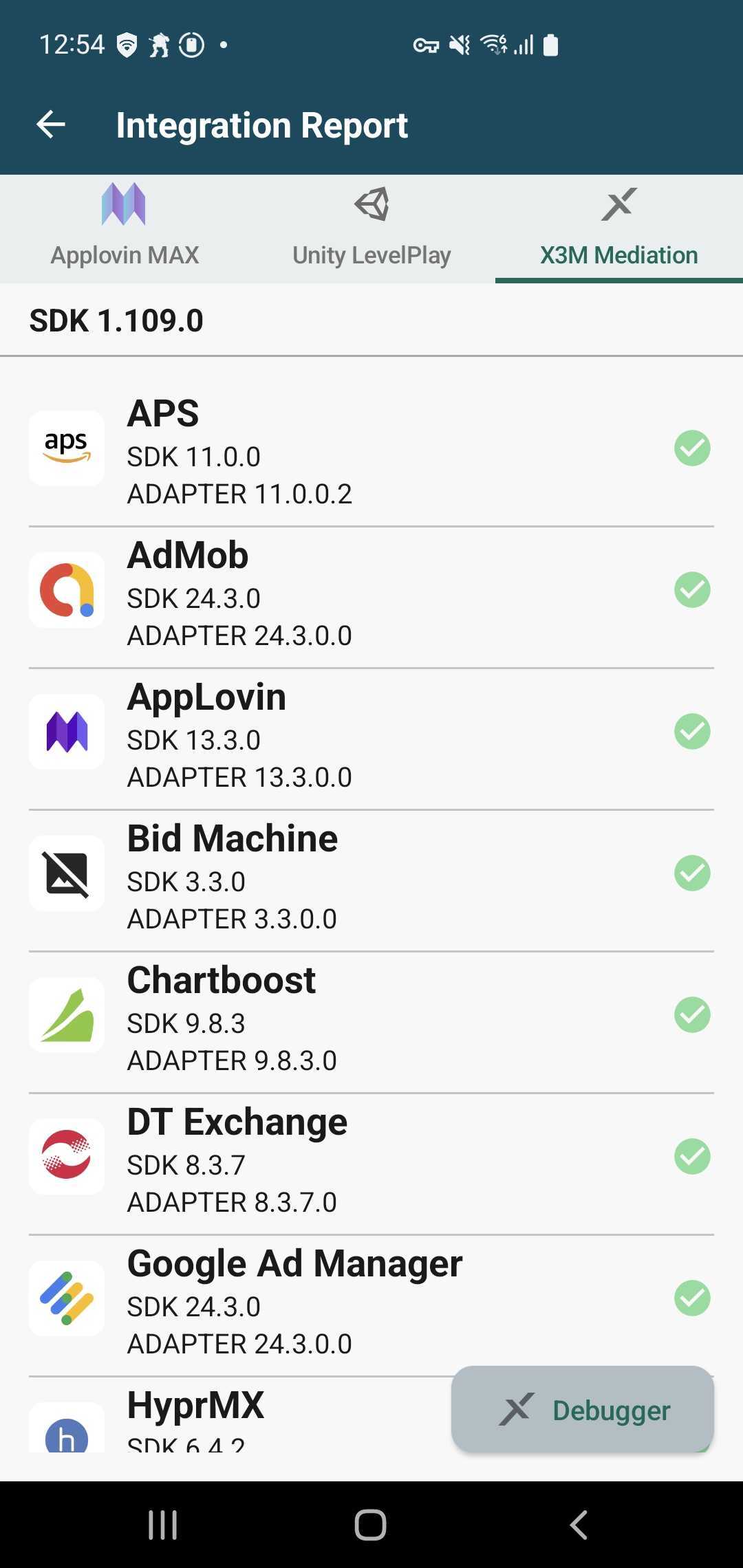

Integration Report
The Integration Report feature helps identify potential integration issues, ensuring correct SDK integration within the app. It provides a list of network SDKs and adapters that are currently integrated for each mediation.
The Integration Report Status provides insight into SDK integration health:

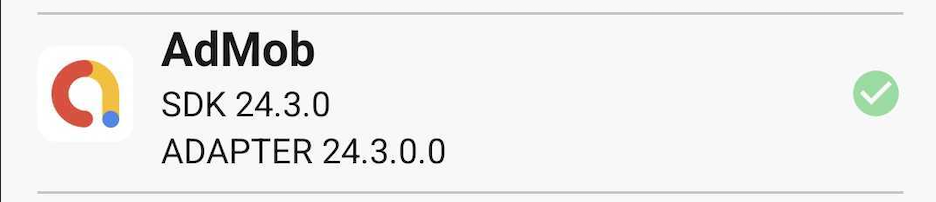

- Integrated: Shows the adapter version and network SDK version, confirming proper integration.

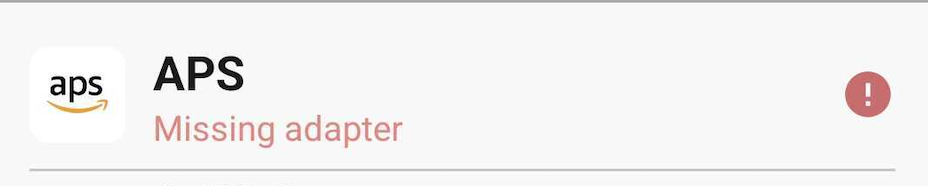

- Missing Adapter: Marks adapters configured in admin but not integrated; requires adding the network adapter.
- Debugger: For each mediation has been integrated you can access with the Debugger button to his own mediation debugging tool, streamlining the verification of integration and functionality.
A/B Testing

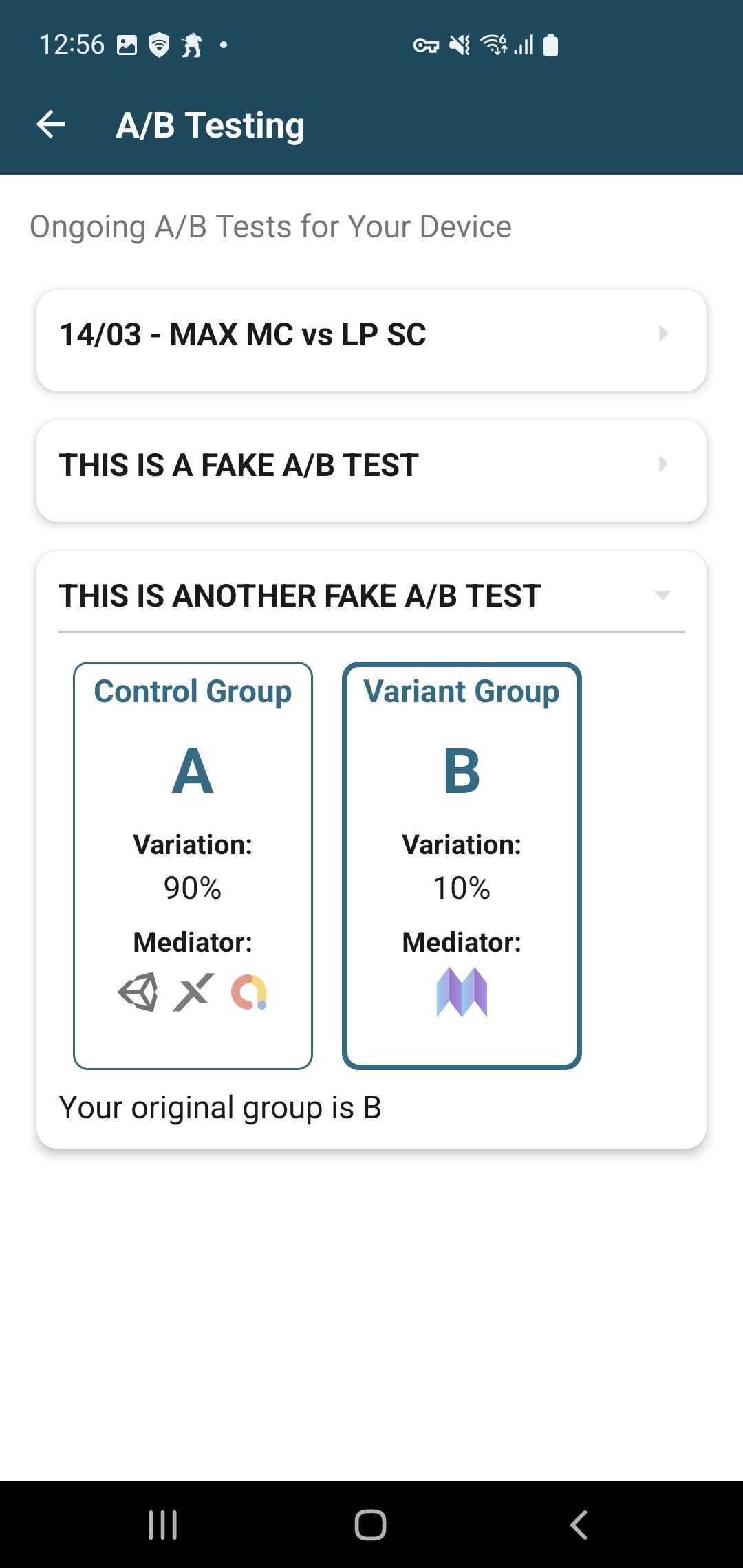

The A/B Testing feature shows the A/B are running in your application, which is the default group for the current user and allows you to force and change the default group for the user.

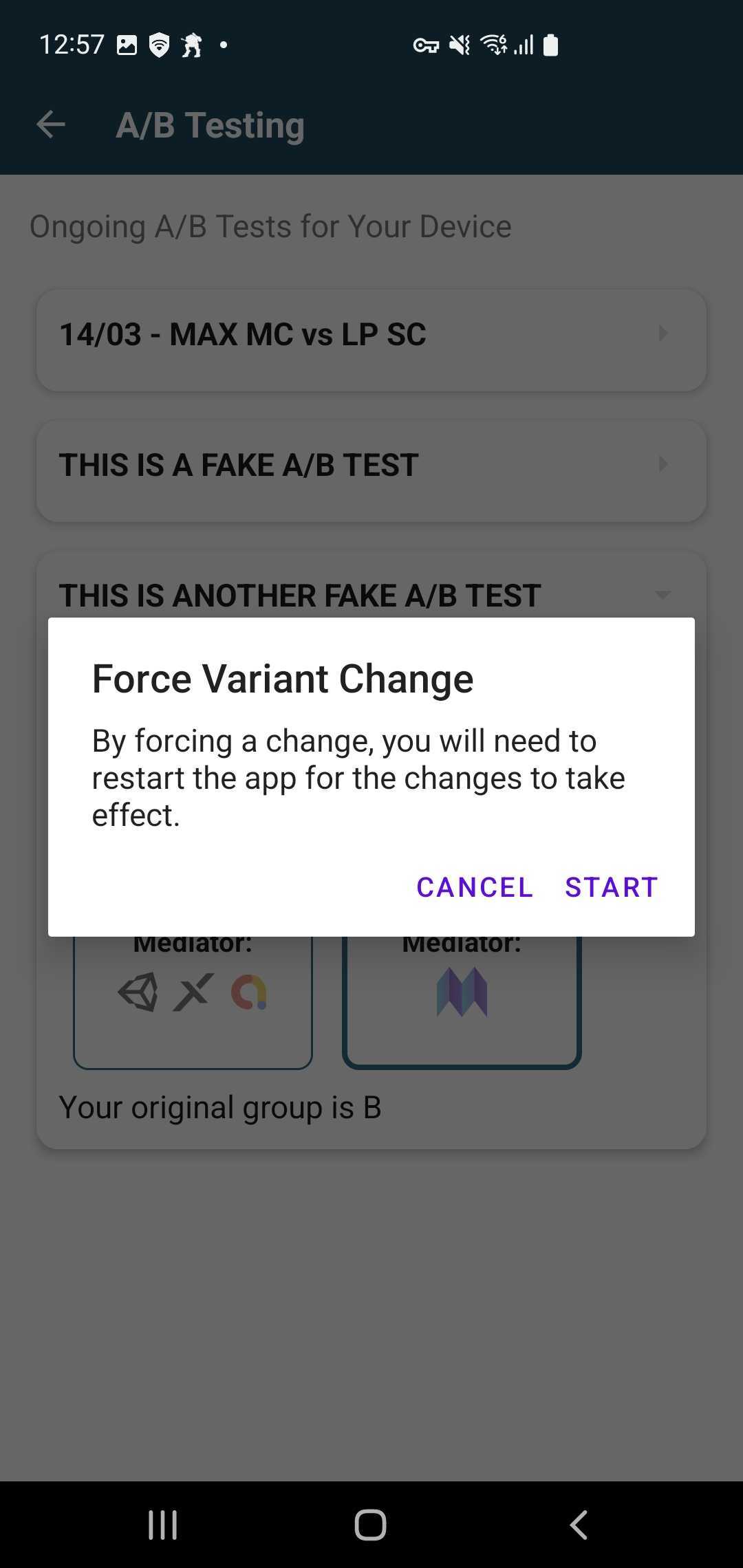

To force a group of A/B tests, select one from the list, and a confirmation alert will appear.
App restart is required for A/B Testing forced strategy work properly. This feature may not work as expected in case this step is skipped.
After forcing the group, it will be visible on the main screen.

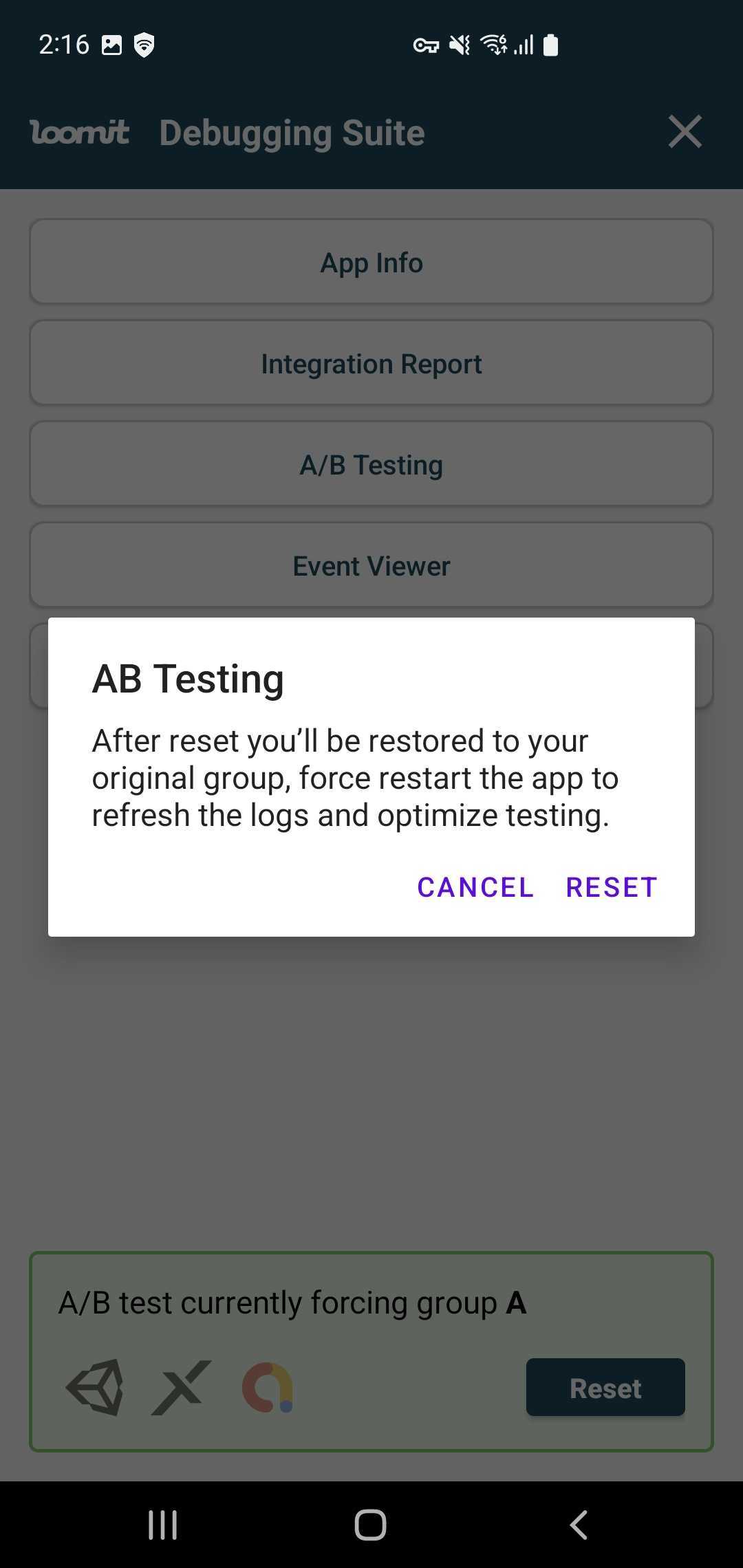

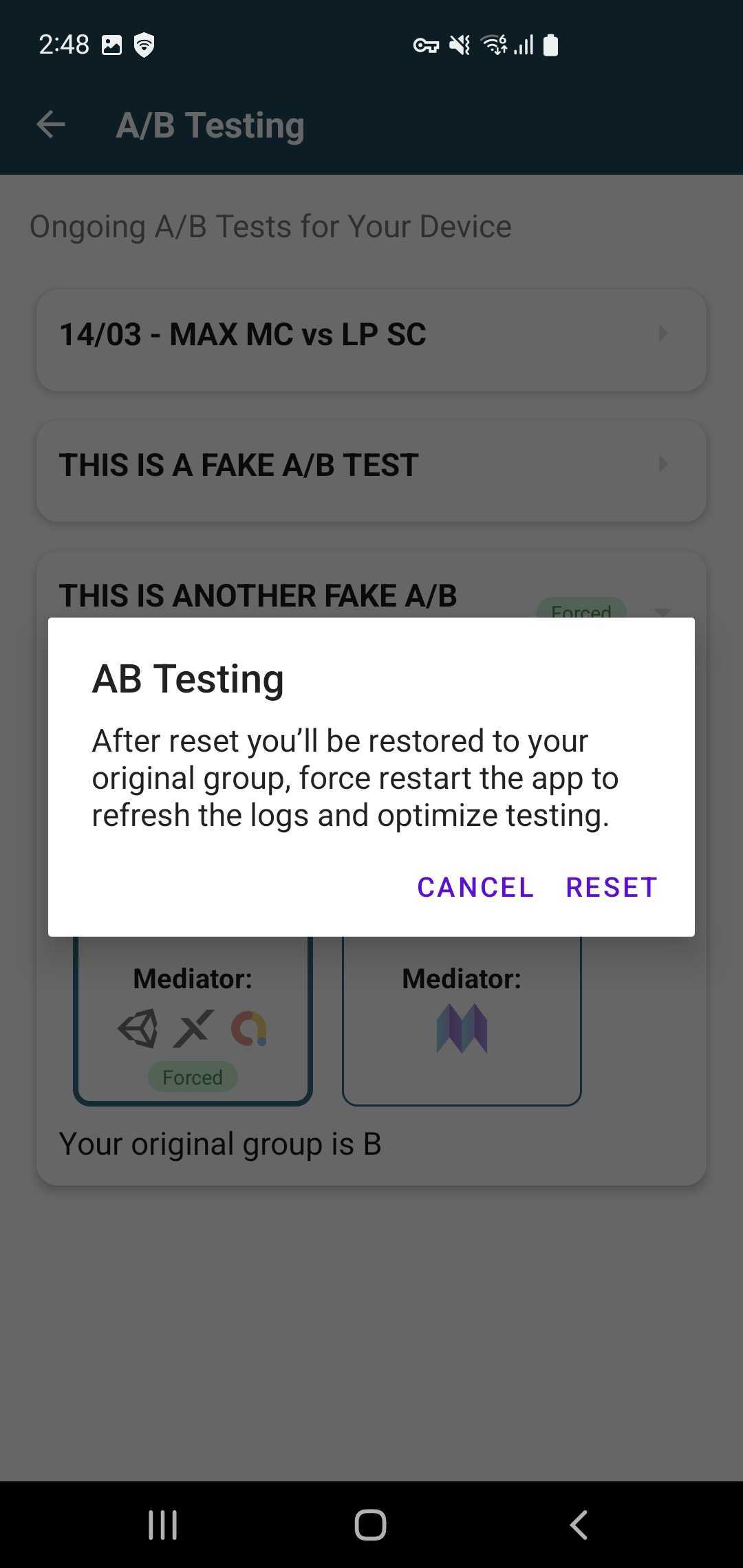

Loomit will now apply the strategy from the selected group. To reset and return to the default group, click on the forced group or restart from the main screen. A confirmation alert will appear.

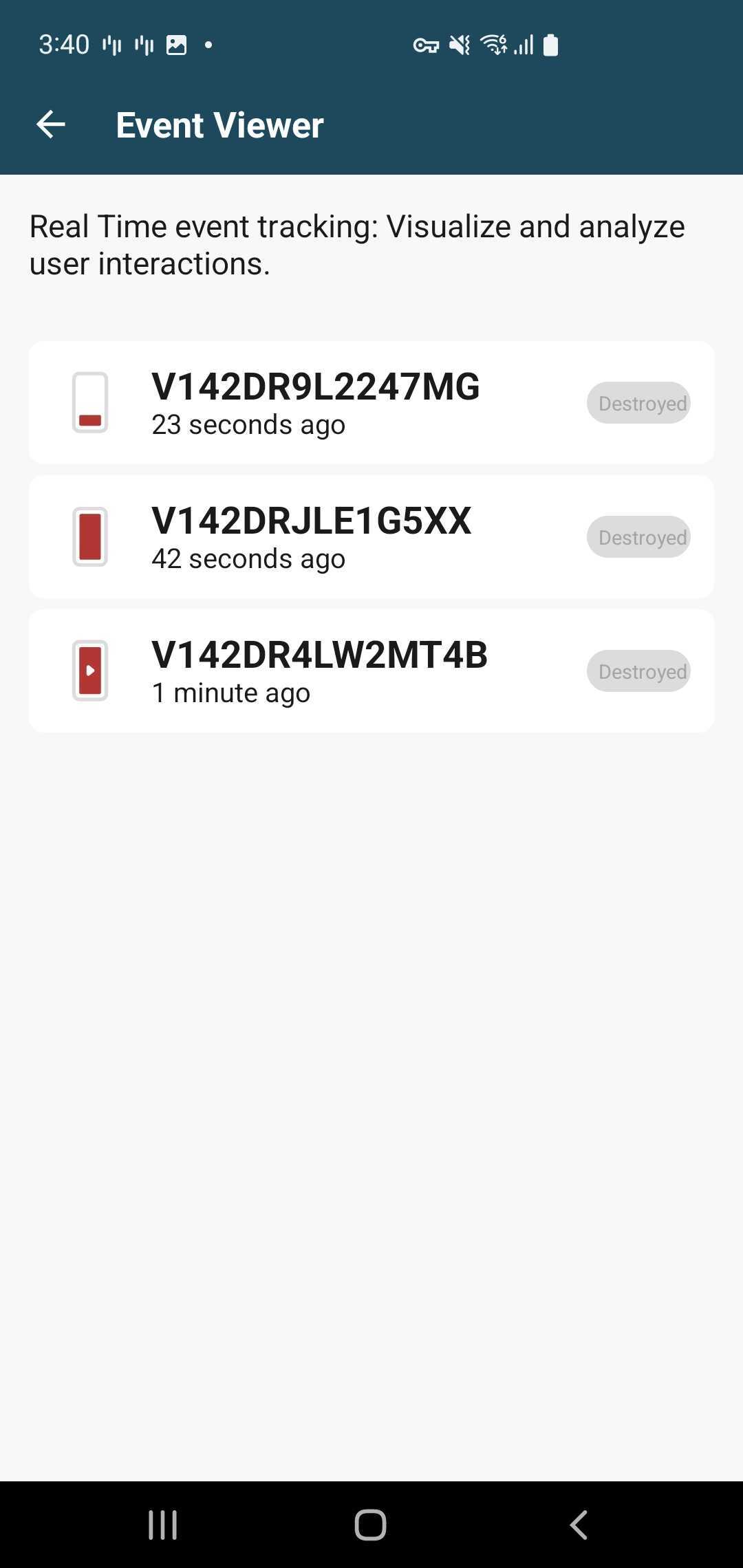

Event Viewer

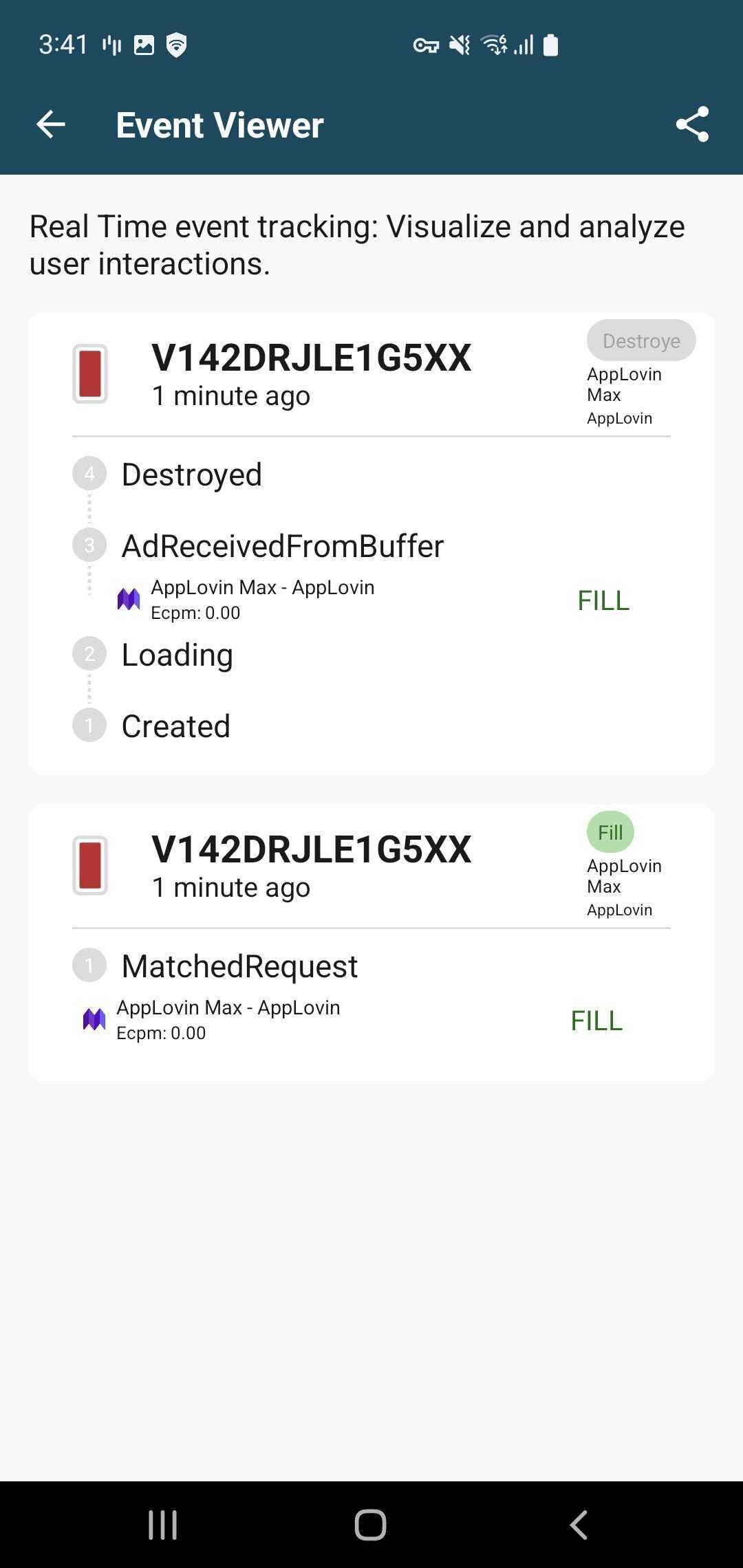

The Event Viewer starts tracking user interactions the first time the Debugging Suite is opened or if the device is registered as a Test Device in the admin settings
The Event Viewer starts tracking user interactions the first time the Debugging Suite is opened or if the device is set as a Test Device in the admin settings.

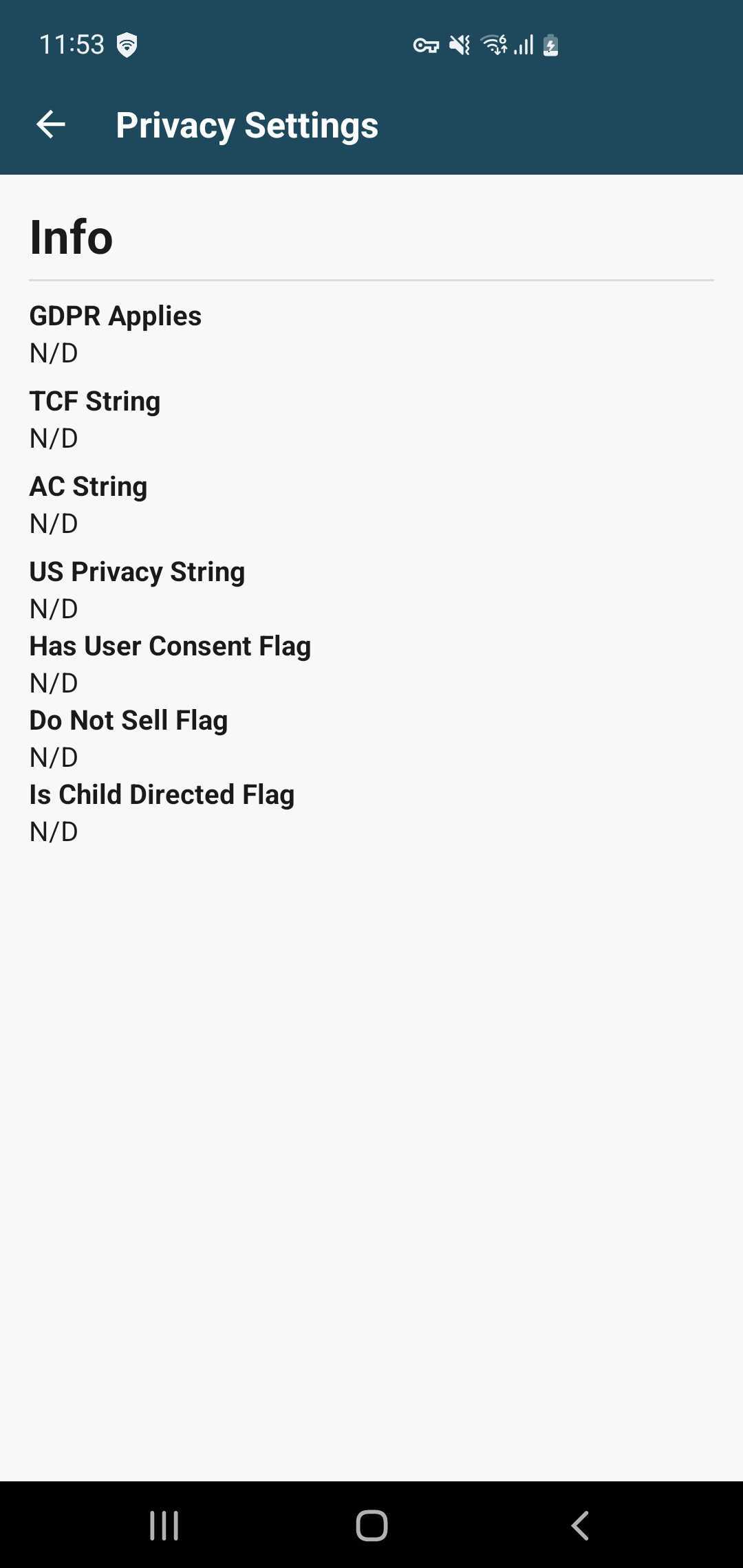

Privacy Settings
The Privacy Settings feature sums up the current status of the privacy settings in your application, showing information about the TCF, Google's AC and CCPA strings and child directed flag.
If you're having problems to see the privacy information, remember to follow this guide to debug your integration.

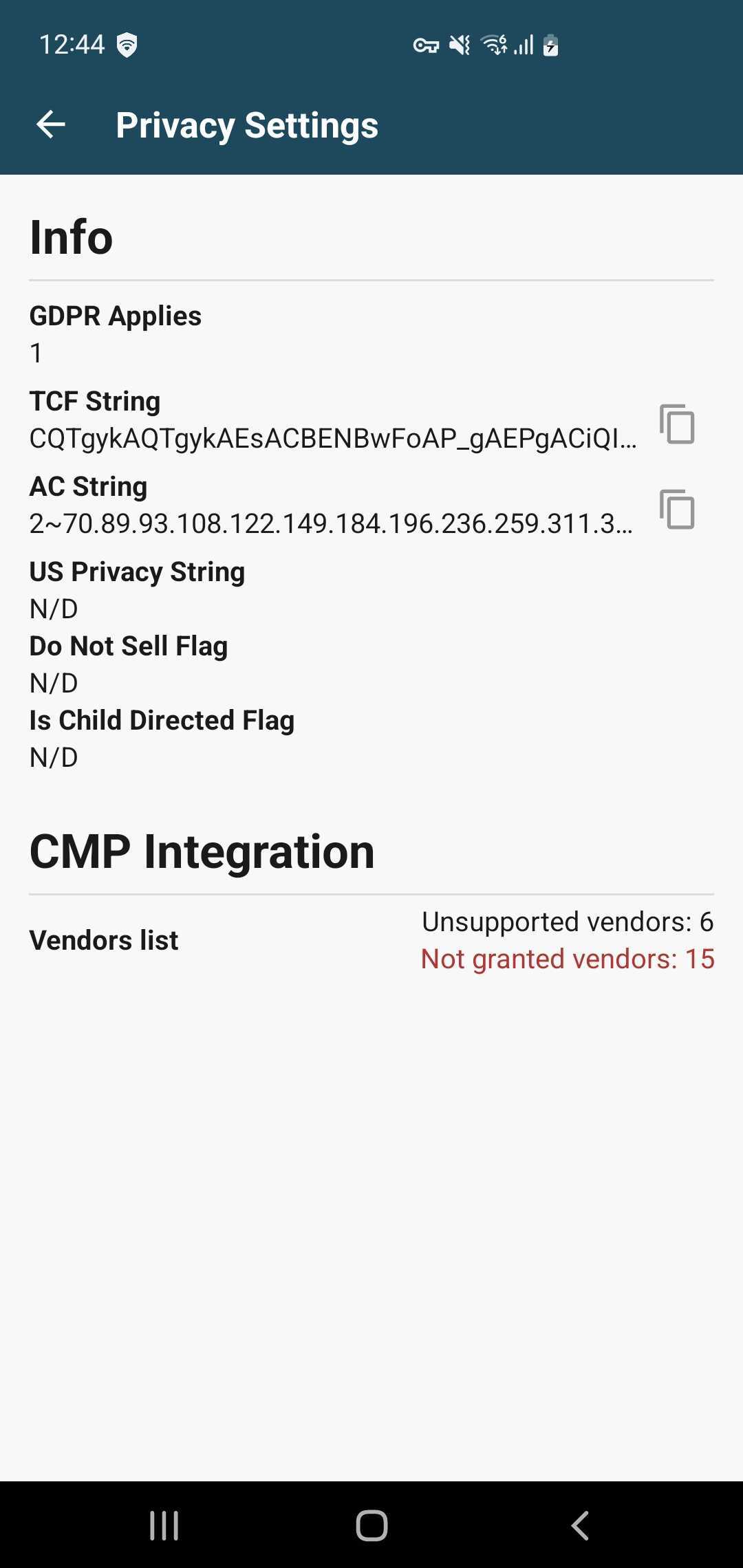

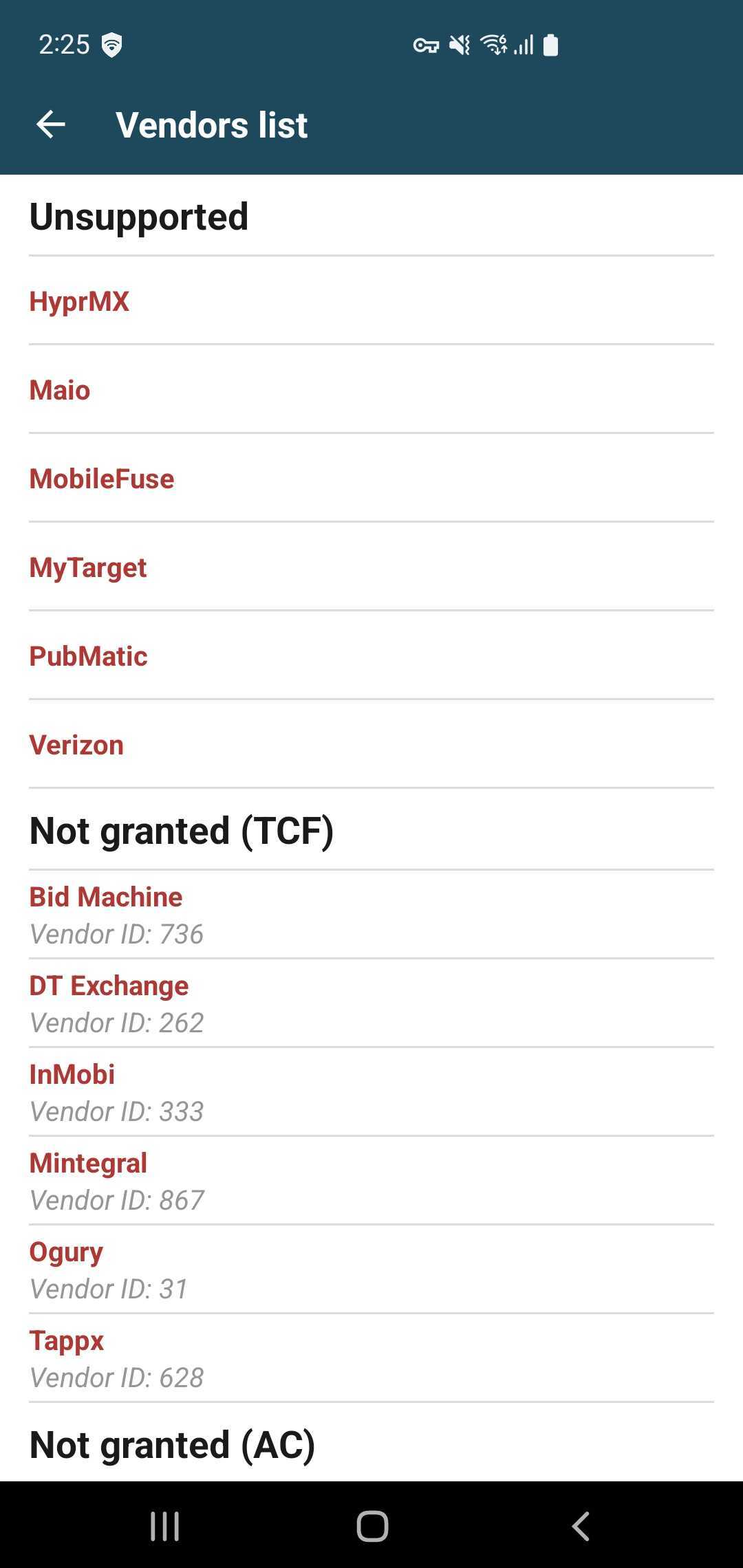

If GDPR is applicable and the consent was gathered using an IAB compliant CMP, under the CMP Integration section you can also view the status of the vendors that your application supports.
To check if a network is missing for your CMP integration, a detailed view of the consent status for each vendor is also available.
